Seeed Meshtastic Node Wio Tracker

Seeed Meshtastic Node Wio Tracker

$59.13 USD
$70.13 USD $59.13 USD
Sale Sold out
Shipping calculated at checkout.
Color

SPECIFICATIONS

Accessory Type: Sensor

Battery Included: Yes

Compatible With: Wio Tracker L1 Pro

High-concerned chemical: None

Typical Application Fields: Internet of Things (IoT)

Note:
L1 Pro comes with Meshtastic firmware by default. If you need to flash MeshCore firmware, please refer to the wiki for self flashing.
https://wiki.seeedstudio.com/get_started_with_other_mesh_firmware/
Description

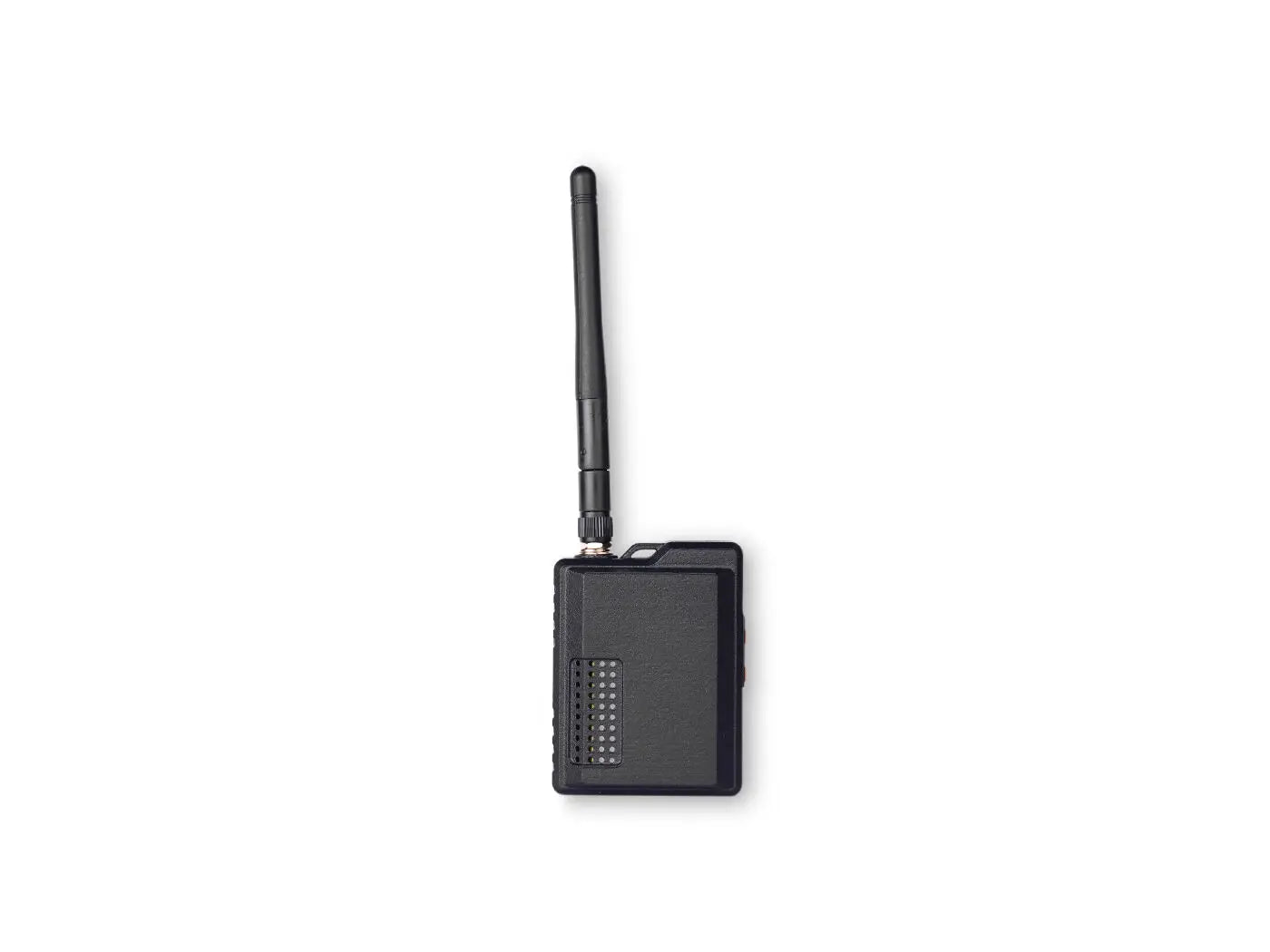

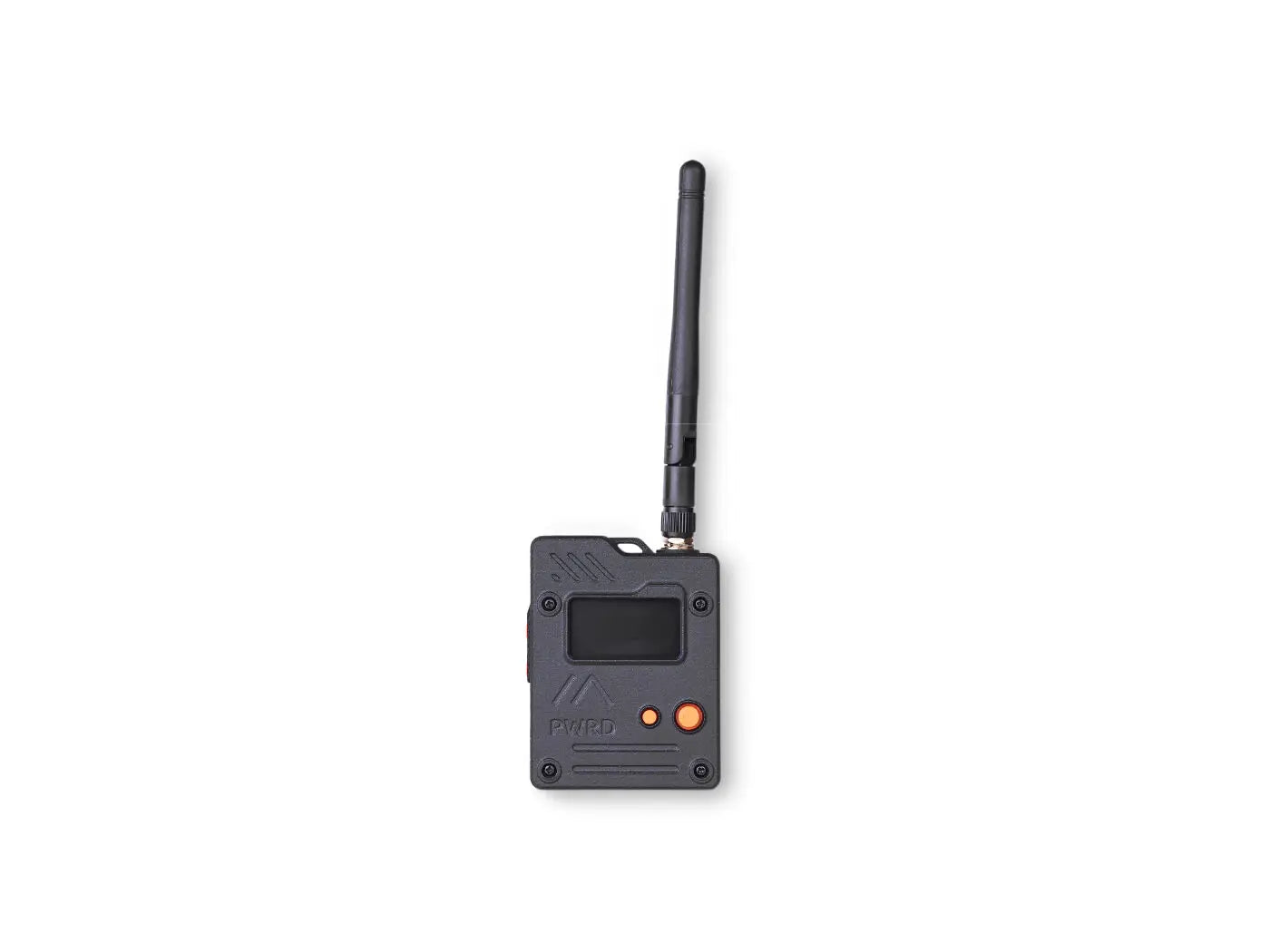

The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.

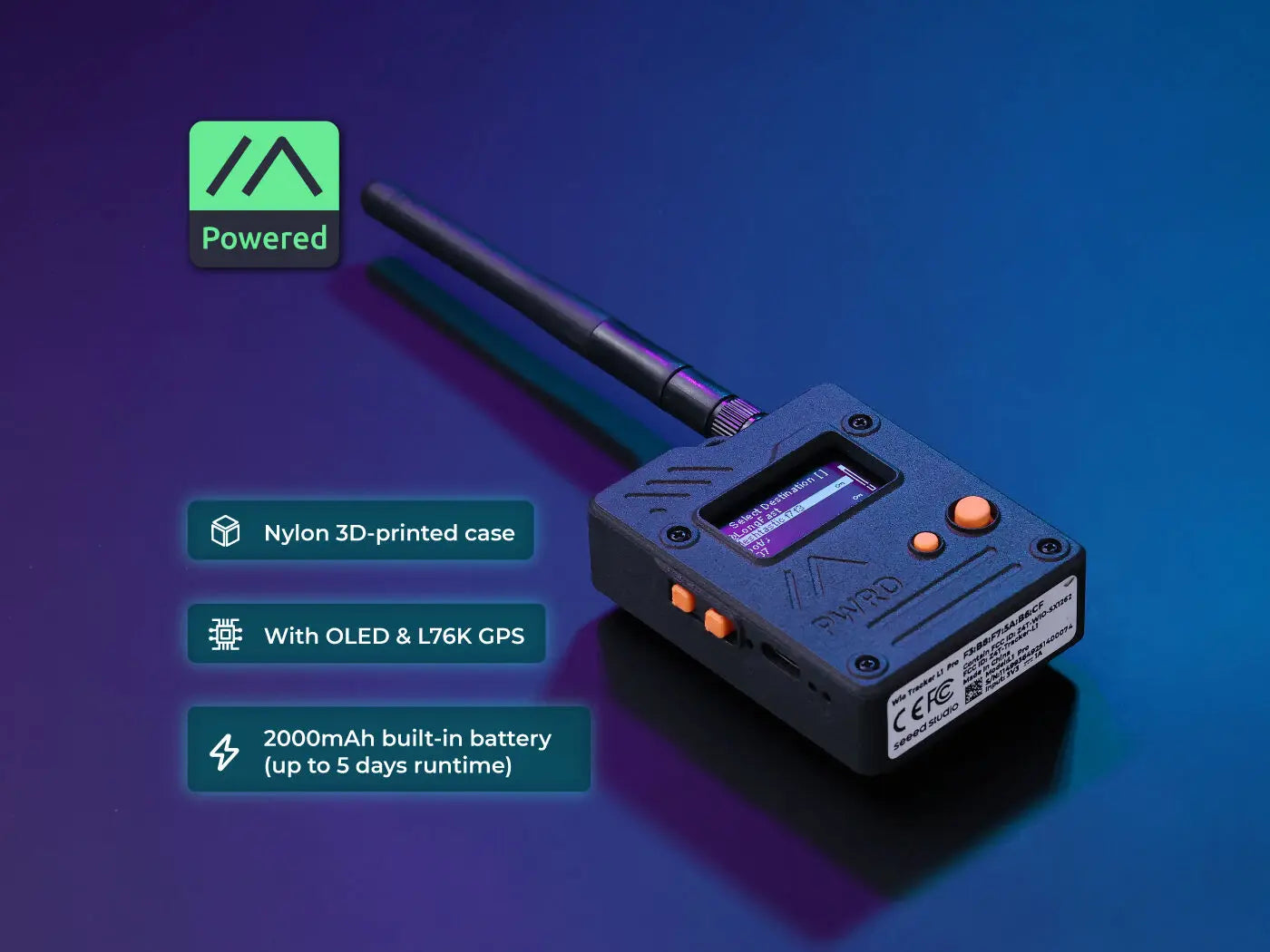

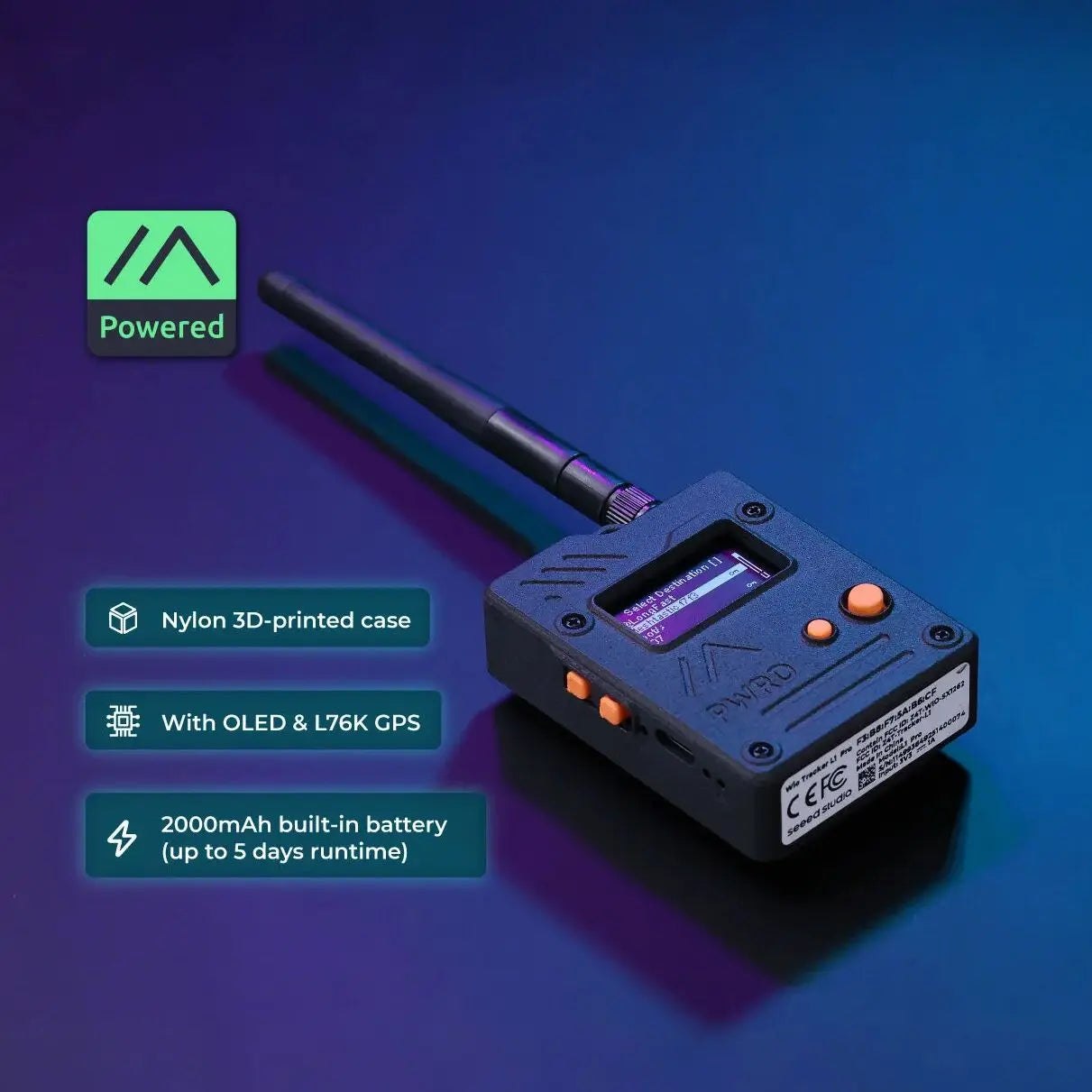

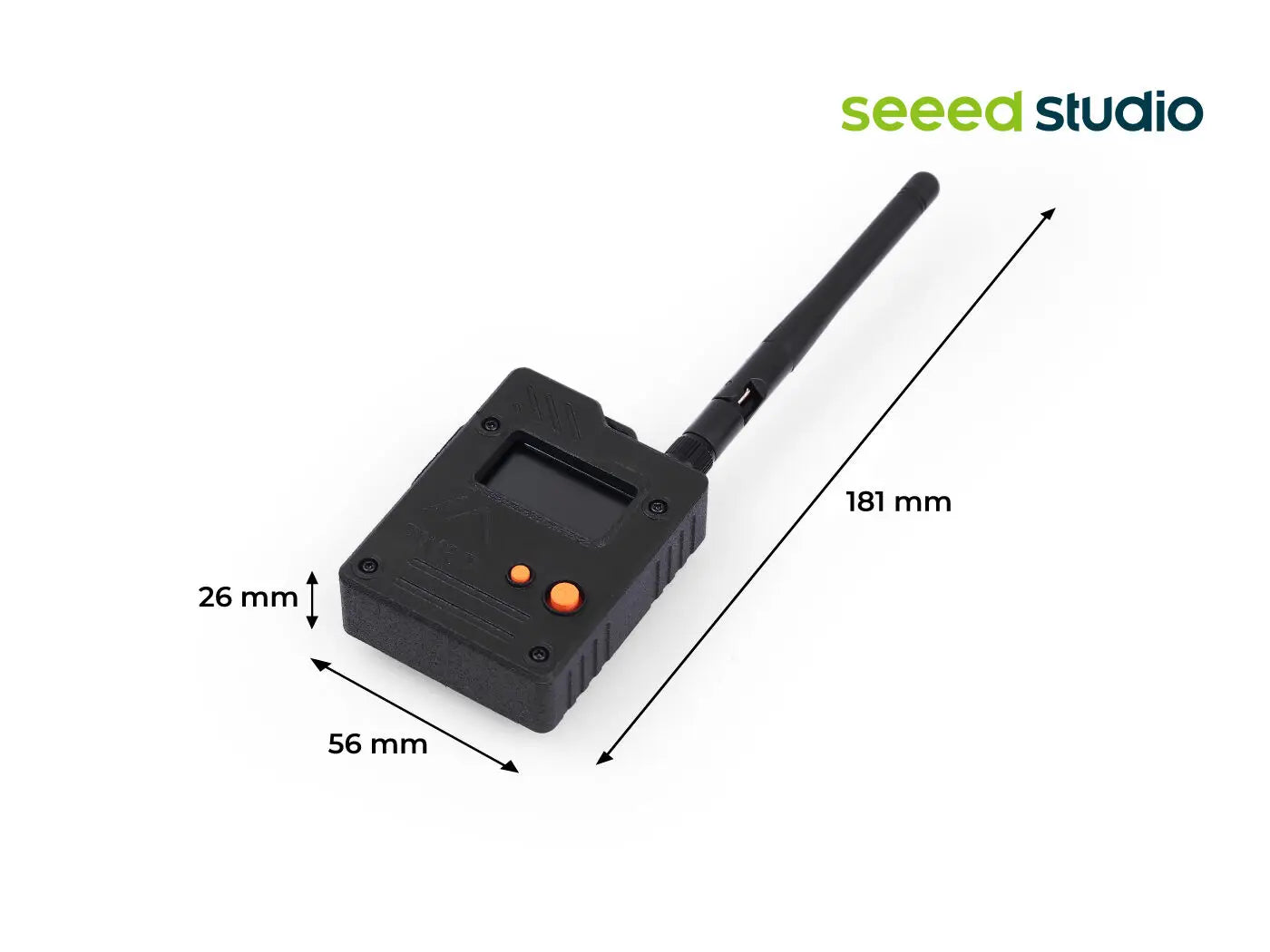

The L1 Pro version is a fully integrated, ready-to-deploy solution featuring an OLED display, rechargeable battery, and durable 3D-printed enclosure. Built for field use with no assembly required.

Feature

  • Ready-to-Use 3D-Printed Enclosure

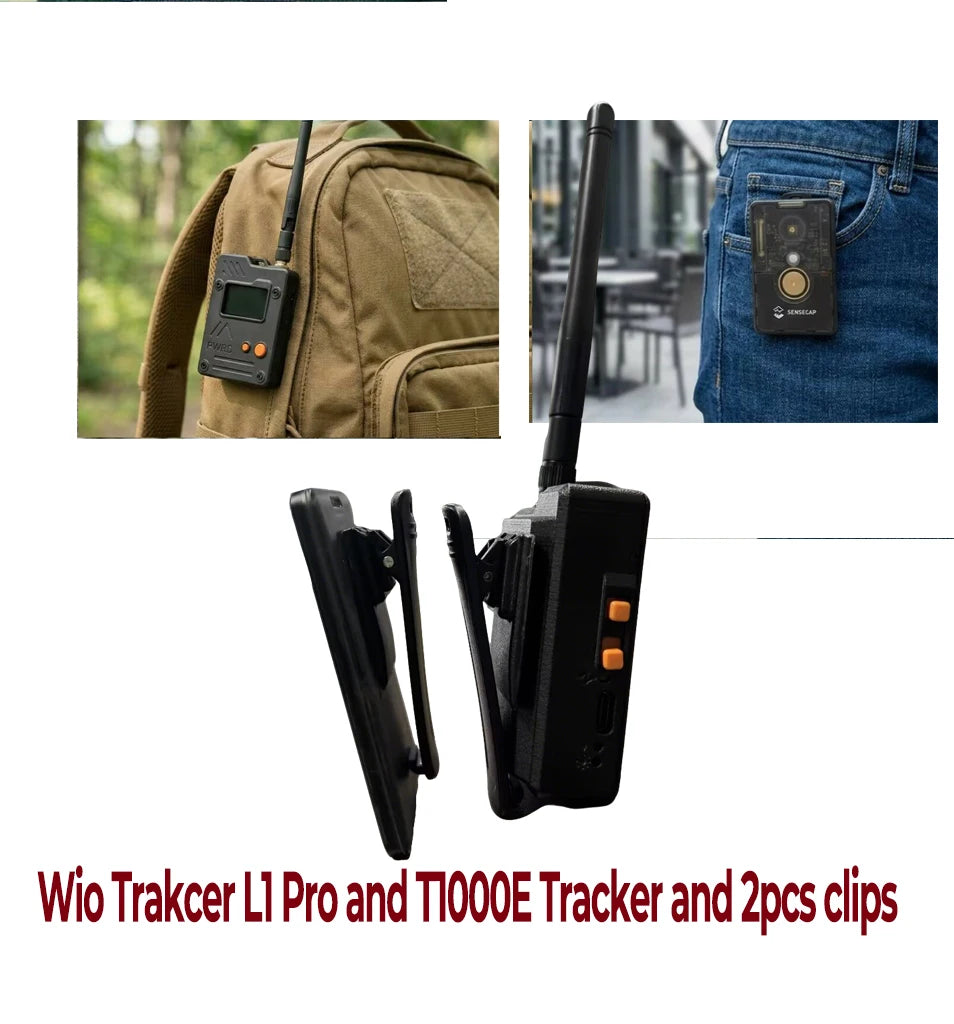

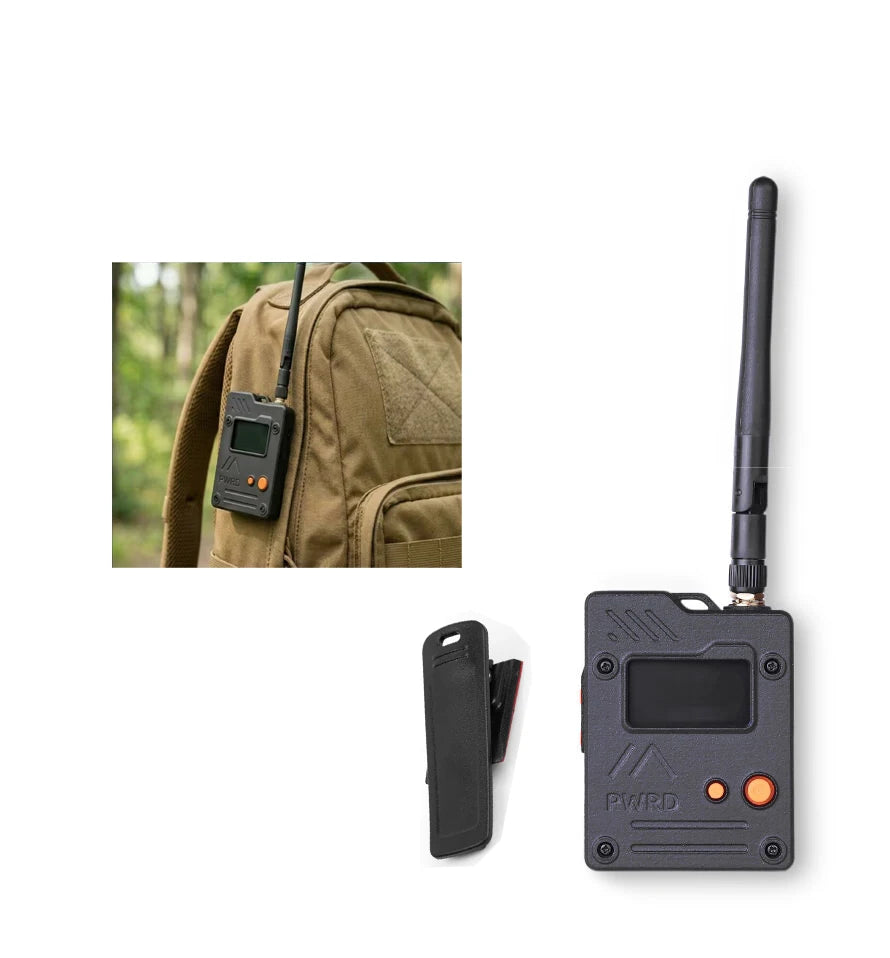

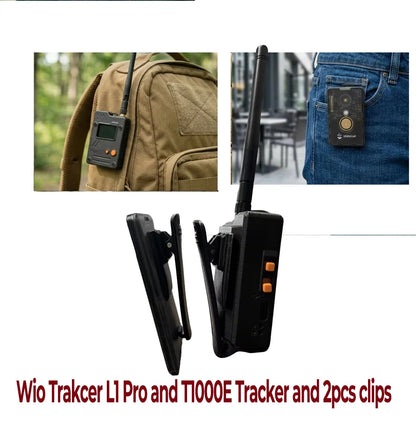

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.

  • Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

  • Triple Power Supply Options

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

  • High Expandability

Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.



Specification

Processor

Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz

On-chip Memory

1 MB flash and 256 kB RAM

Wireless

LoRa: Based on Wio-SX1262, supports 862-930MHz

Bluetooth 5.0

GPS

L76K(GPS,BeiDou,GLONASS,QZSS)

OLED Display

Size: 1.3 inch

Resolution: 128*64 pixels

Active Area(mm): L34.5*W23.0*H1.47

Power

Type-C: 5v---1A

Solar energy interface: 5v---1A

Battery interface: 3.7v---1A

Certification

FCC, CE, RoHS
